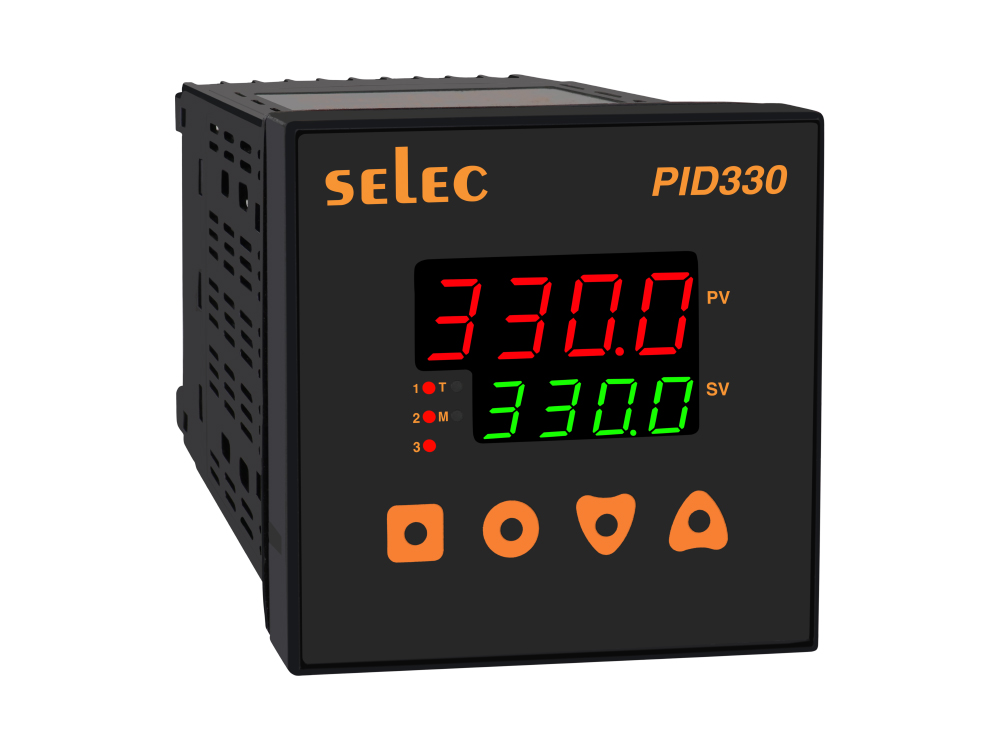

SKU: PID330
Categories: Meters, Relays, Timers, Counters, APFC
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4+4 digits |
| Type of Inputs | Thermocouple: J, K, T, R, S, C, B, N, L, U, W, Platinel II RTD: pt100, Single Input (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable) |
| Resolution | TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001 |
| Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 |
| Control Output | Relay or Current : 4 to 20mA DC (max load 500E) |
| Auxiliary Output | Maximum 2 Relay ( Mode:Set Point or Alarm mode ) |
| Control Mode | Autotune PID / ON-OFF |
| Feature | Single step ramp soak |
| Communication | RS485 MODBUS Communication (Optional) |
| Supply Voltage | 90 to 270V AC/DC |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
