3.5Core 300sqmm LV Al Ar Cable

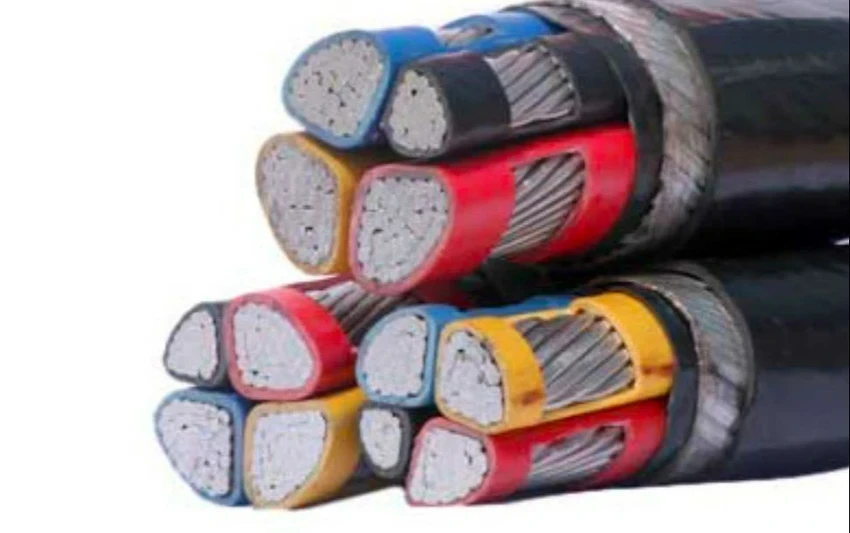

3.5C/ 300sqmm Low Voltage Aluminium Armoured Cable
APPLICATION
POLYCAB A2XFY MC-3.5,Stranded compacted aluminium conductor ,XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth
Categories: Low Voltage Cables Armourerd and UnArmoured
CONSTRUCTION
- Stranded compacted sector shaped Aluminium conductor as per IS 8130, class 2
- Insulated with Cross Linked Polyethylene (XLPE) to IS 7098-1
- Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
- Armoured with Galvanised Flat Steel Strip to IS 3975
- Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH
